| Model NO. | CK-1530-7T-5AXIS |
| Voltage | 380V |
| Tool Holder | Double-tool Holder CNC Lathe |
| Automatic Grade | Automatic |
| Precision | High Precision |
| Controlling Mode | CNC |
| Certification | CE, ISO, FDA, RoHS |

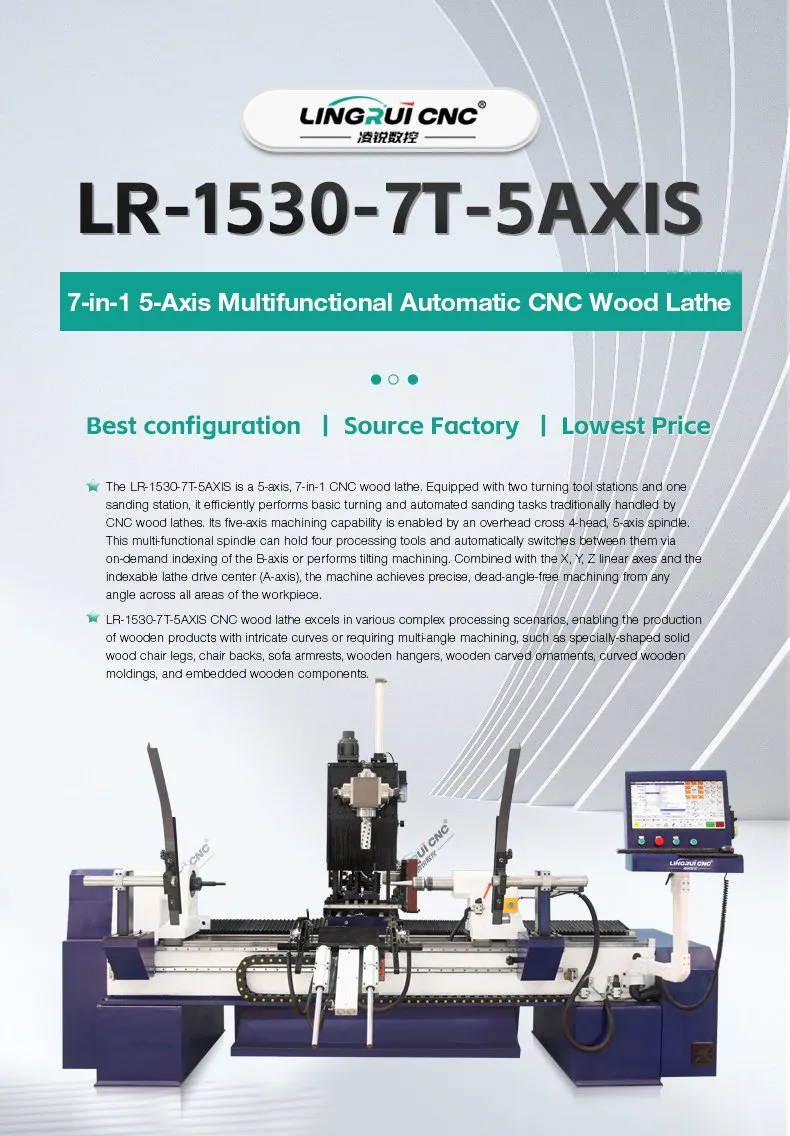

| Product Name | 5 Axis CNC Wood Lathe Machine |
| Linear Axis Drive Motor | Bus-Type Absolute 1500W Servo Motor |
| Control System | Taiwan Lnc Control System |
| Repeat Positioning Accuracy | ±0.02mm |
| Processing Dimensions | 1500 * 300mm (customizable) |
| Lathe Bed | Heavy-duty integrally cast parallel twin beds |

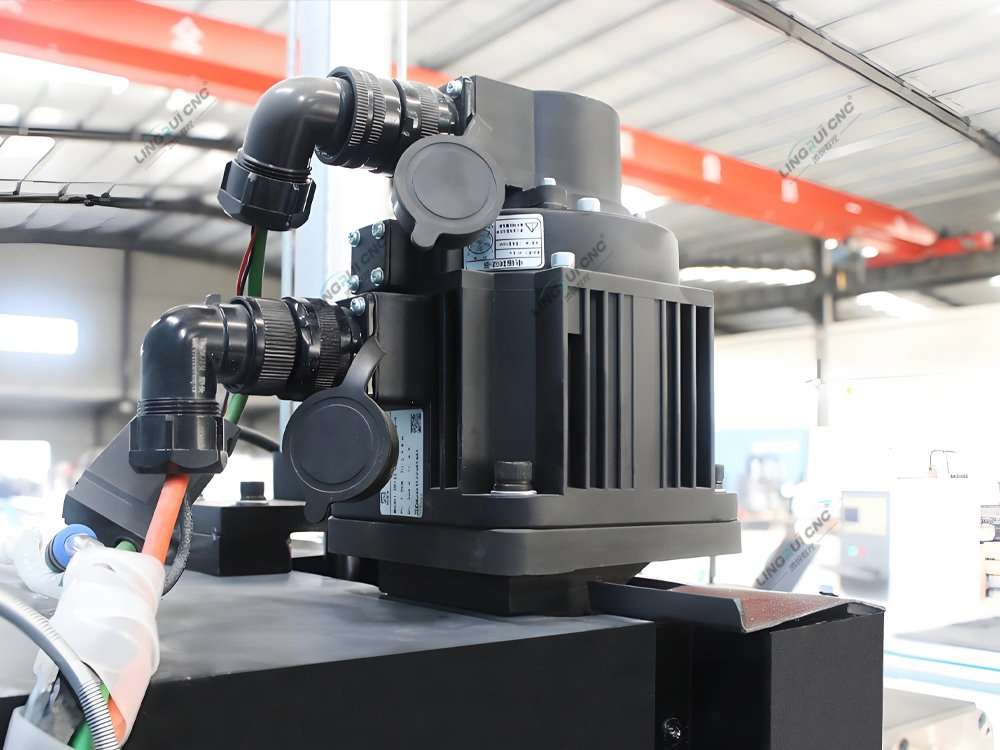

| Drive-Spindle Motor | 4KW pure servo high-torque and high-speed motor |
| Multi-functional Spindle | 7.5KW high-speed air-cooled four-head spindle (supports 5-axis RTCP) |
| Sanding Device | Independent 1100W variable frequency servo motor control |
| Lubrication System | Central automatic timed lubrication |
| Dimensions | 3750*2150*2150mm |
| Weight | 2300kg |

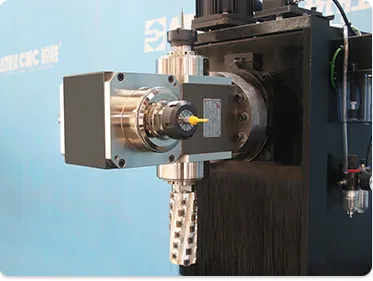

Four-Head Electric Spindle: Integrated design, max 18,000 rpm, supports ±90-degree tilt for complex drilling and engraving.
Turning Tool Positions: Dual pneumatic switched positions for V-type, U-type, and cut-off tools.

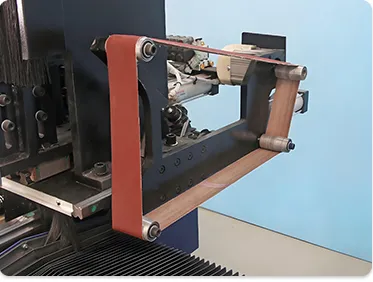

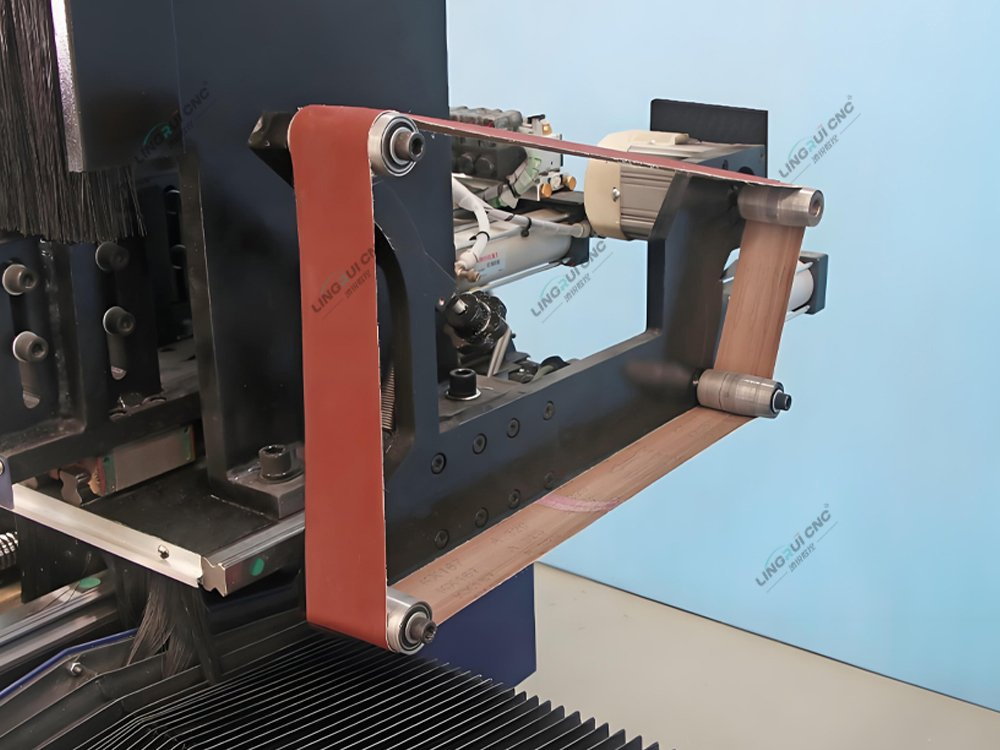

Sanding Unit: 1100W brushless servo motor, adjustable speed up to 6000 rpm for precise grinding.

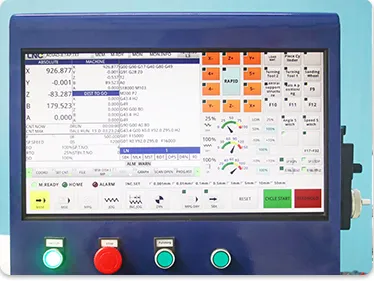

Taiwan LNC System: Supports five-axis RTCP linkage and handwheel simulation.
Industries: Furniture Manufacturing, Architectural Decoration, Musical Instruments, and Crafts.
