Basic Specifications
Transmission
USB/RS485/LAN/WiFi
Product Description

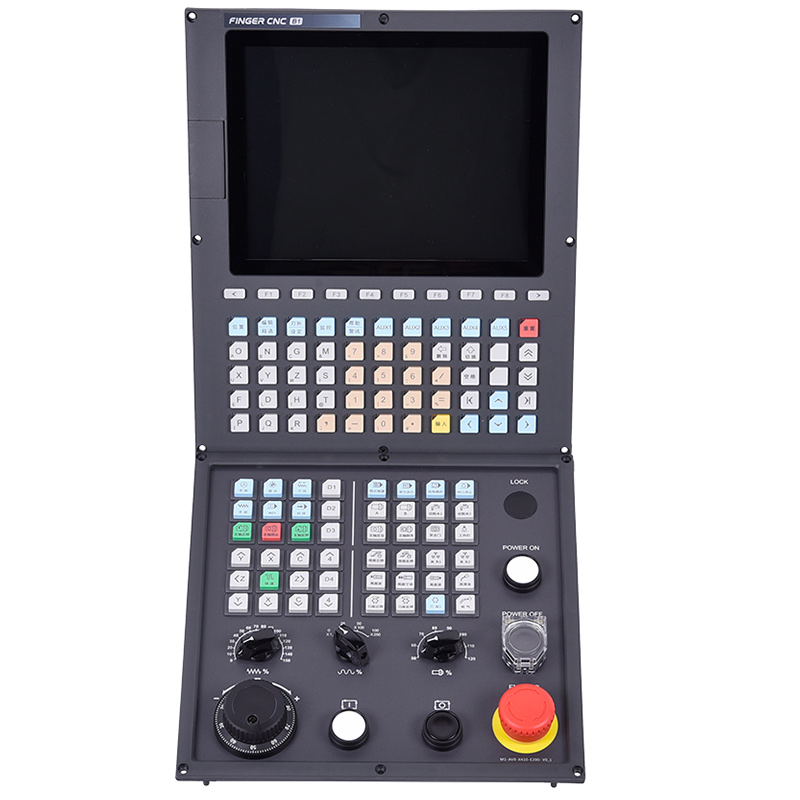

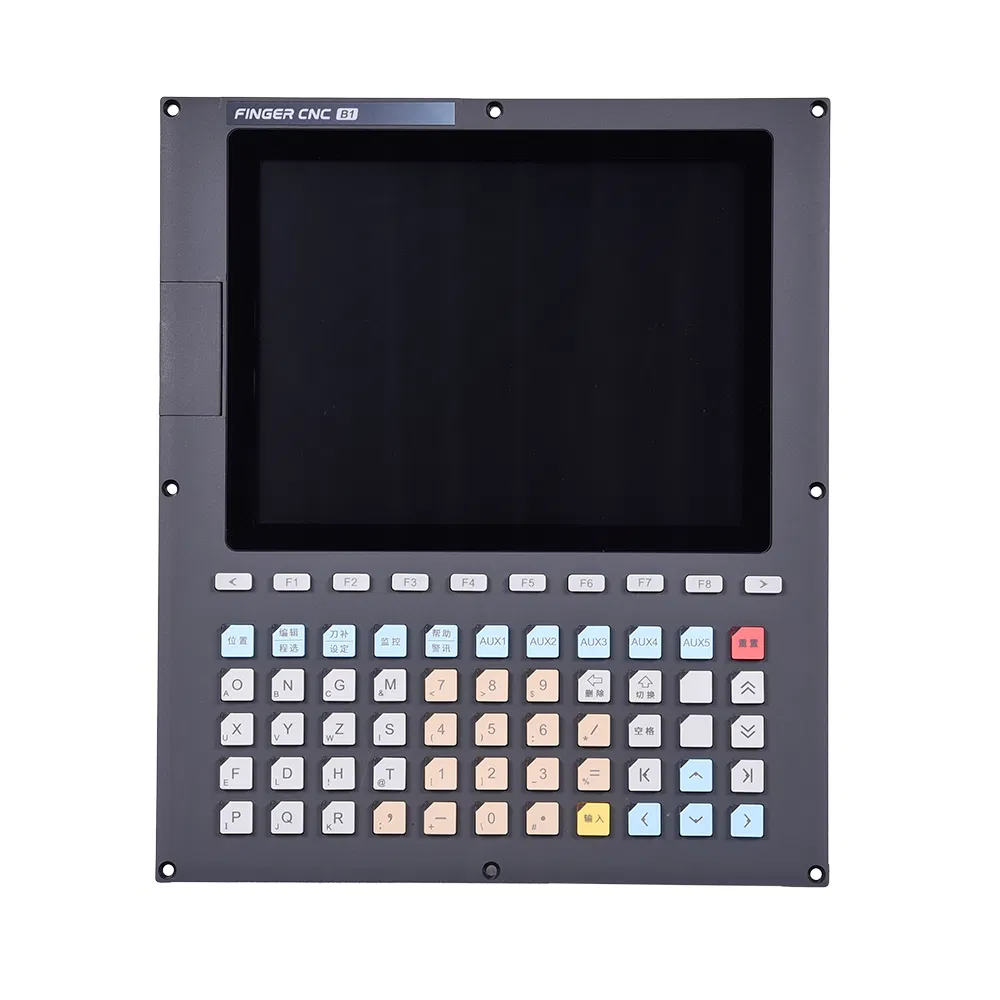

4 Axis PLC CNC Lathe Controller Horizontal Type
High-end CNC machine tool solution with multi-channel control capability and closed-loop accuracy.

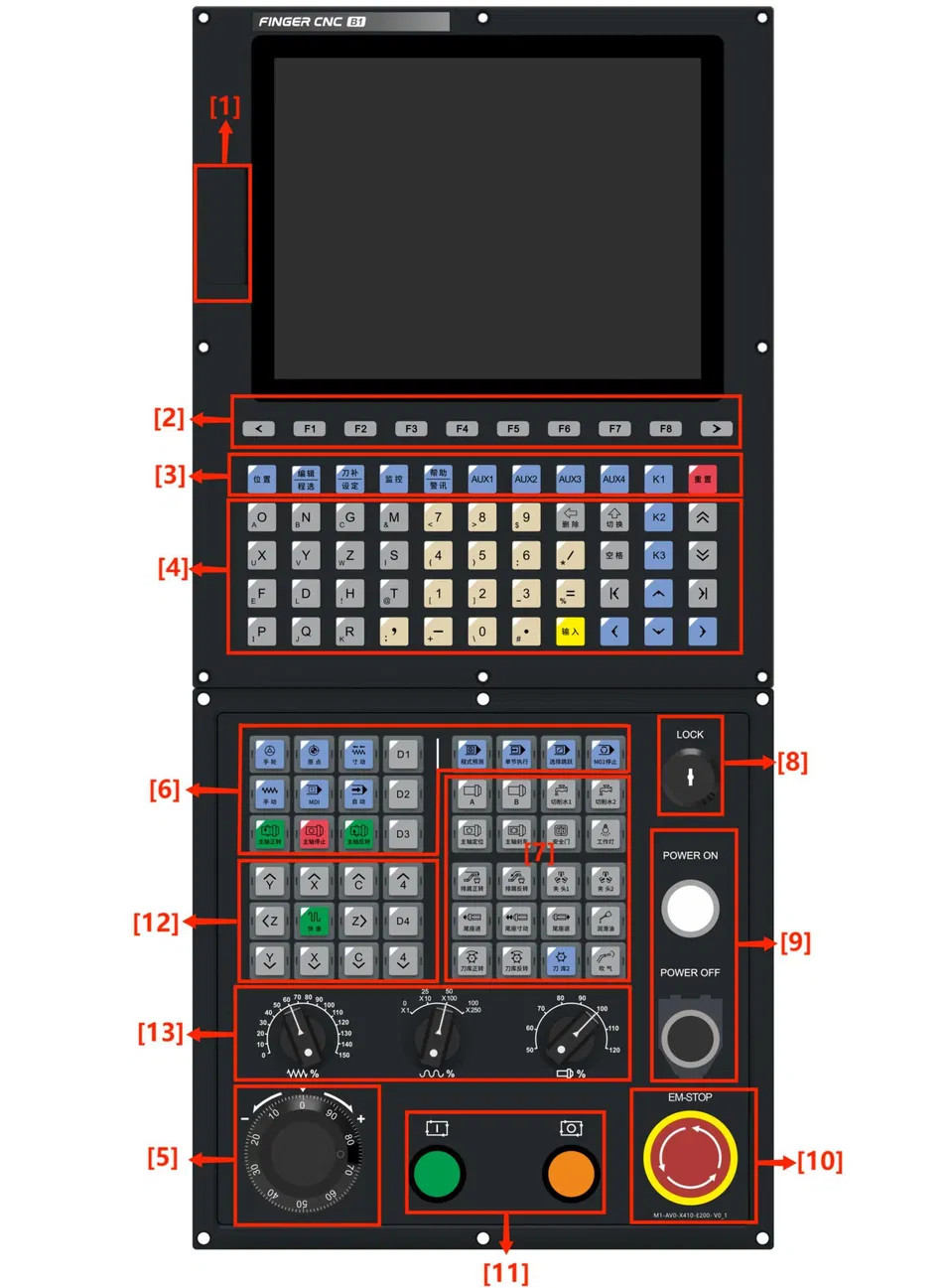

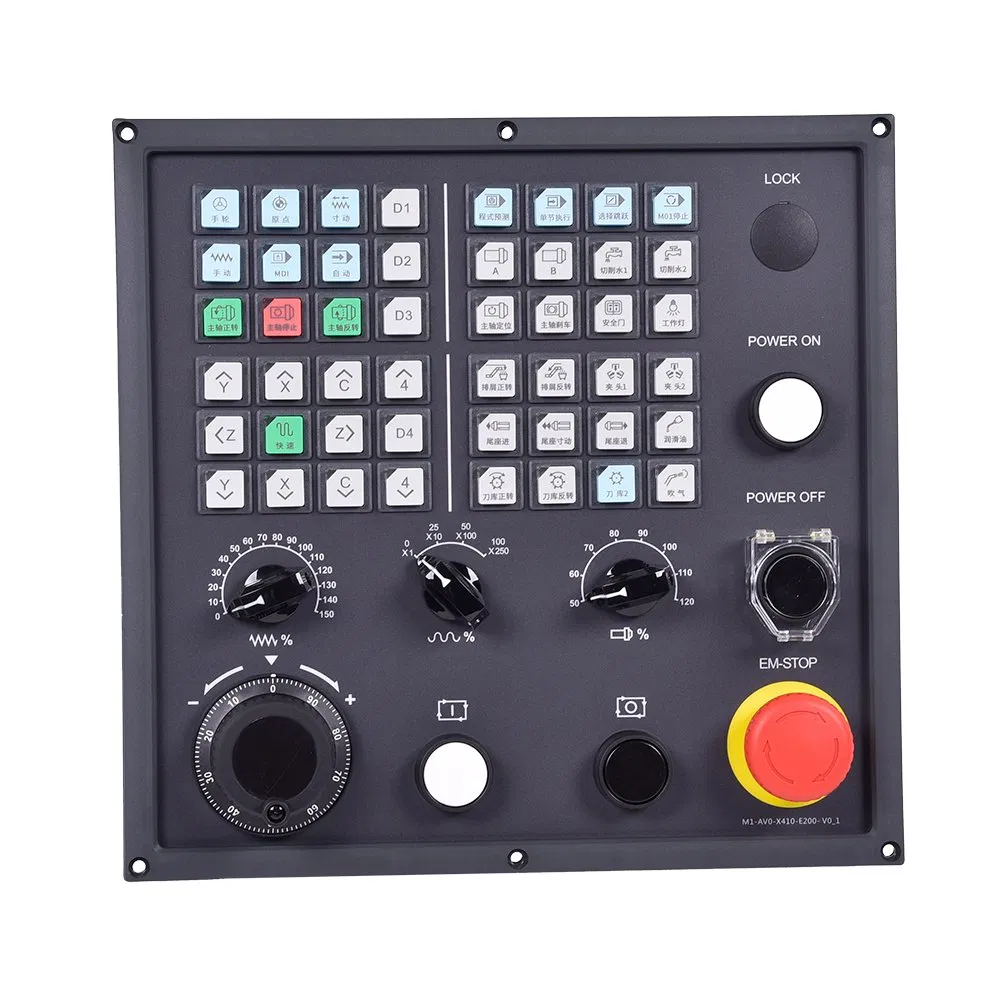

Panel Features
- USB communication port
- F1-F8 function selection buttons
- Handwheel & Auxiliary panel
- Emergency stop & Cycle start

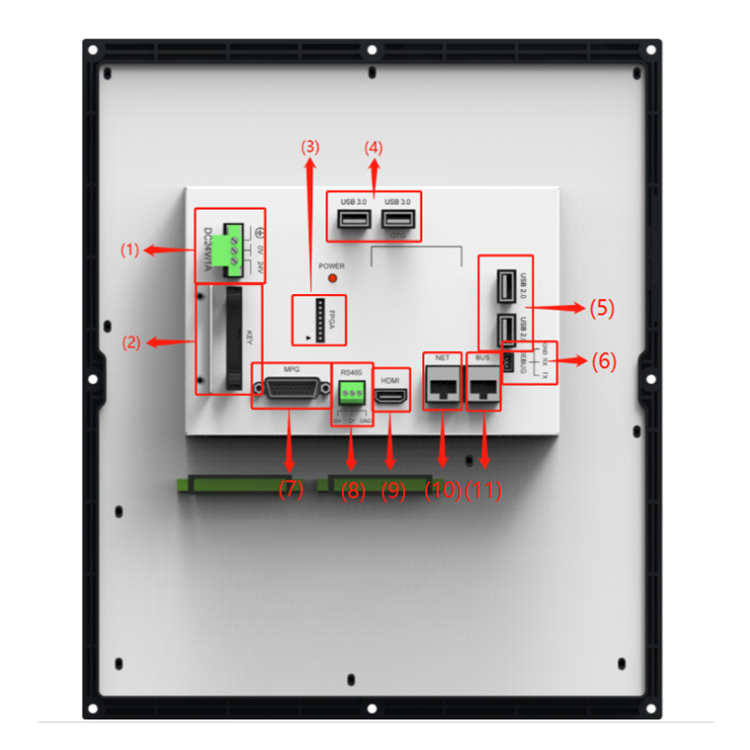

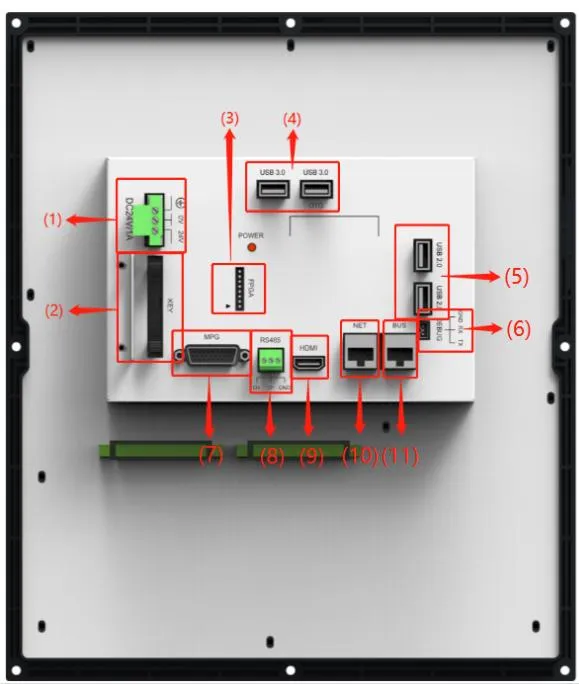

Interface Capability
- USB 3.0 & 2.0 ports
- HDMI for external display
- EtherCAT / RS485 Field Bus
- Local area network (OPC-UA, Modbus)
Technical Specifications
| Number of Standard Axis | Standard 20 (Including Spindles) |
| Number of Channels | 3 |
| Max Linked Axis | 5 (XYZC per channel) |
| Control Accuracy | 0.0001mm |
| Tool Compensation | 160 groups |
| I/O Expansion | Standard I16/O16 (Max I256/O256) |
| Pre-fetch Speed | 8000b/s |

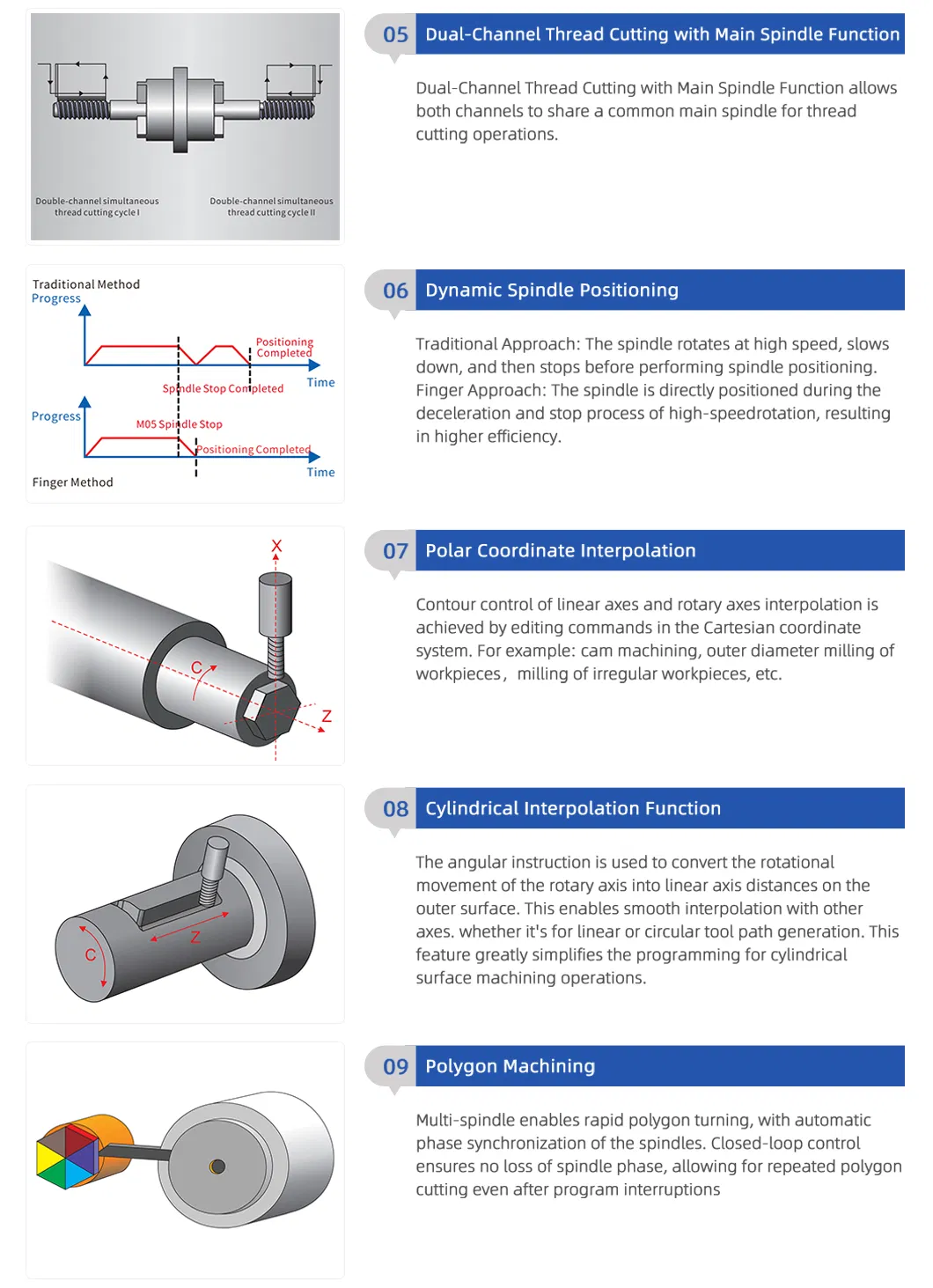

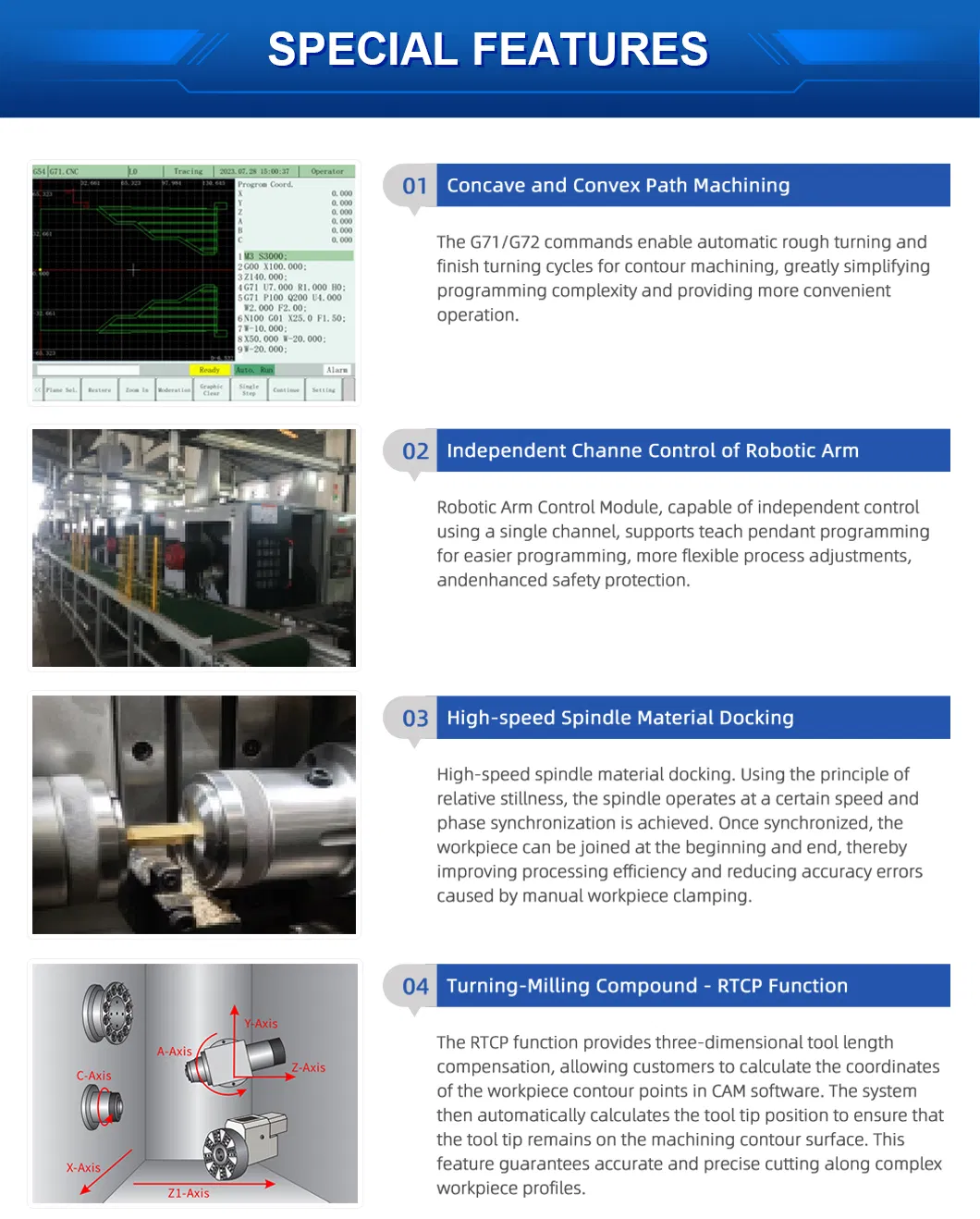

Special Features & Applications

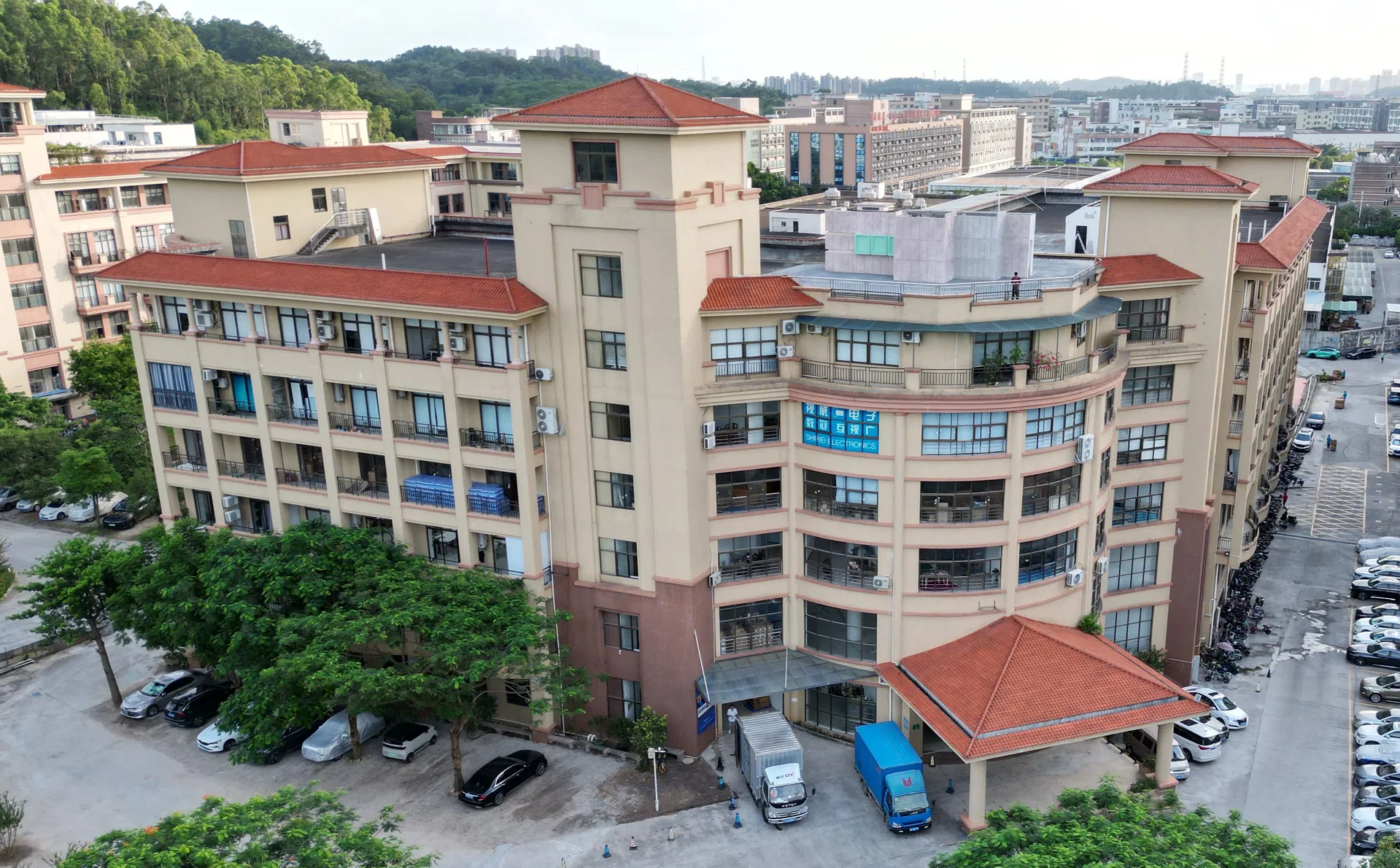

Company Profile
Focused on creating high-performance open CNC systems, we specialize in motion control, edge computing, CAD/CAM, and industrial IoT technologies. Our Open CNC development platform makes customized electrical controls simpler and more cost-effective.
Frequently Asked Questions
Why should you choose our CNC solutions?
We provide high-performance development platforms including PLC, HMI, and CAD/CAM. Our open CNC technology allows for cost-effective customization and features high-speed, high-precision motion control with stable EtherCAT support.
What are the primary applications for your controllers?
Our products are widely used in high-end turning and milling centers, grinding machines, spring machines, woodworking machines, and 3C electronics manufacturing.
What is the warranty and support policy?
All parts are professionally tested and 100% functional before dispatch. We offer lifetime software upgrade services via USB and comprehensive technical support.
What happens if the machine encounters an issue?
Our technical support is available to troubleshoot with engineers. We provide a two-year warranty for parts under normal use, and operation manuals/CDs are included with every machine.
What is the typical delivery time?
Standard stock items ship within 14-30 days. Non-stock items typically take 7-14 days depending on quantity, and customized manufacturing takes approximately 30 days.
Does the system support remote monitoring?
Yes, our systems support IoT toolkits, LAN, and WiFi connectivity for modern industrial monitoring and data transmission.
